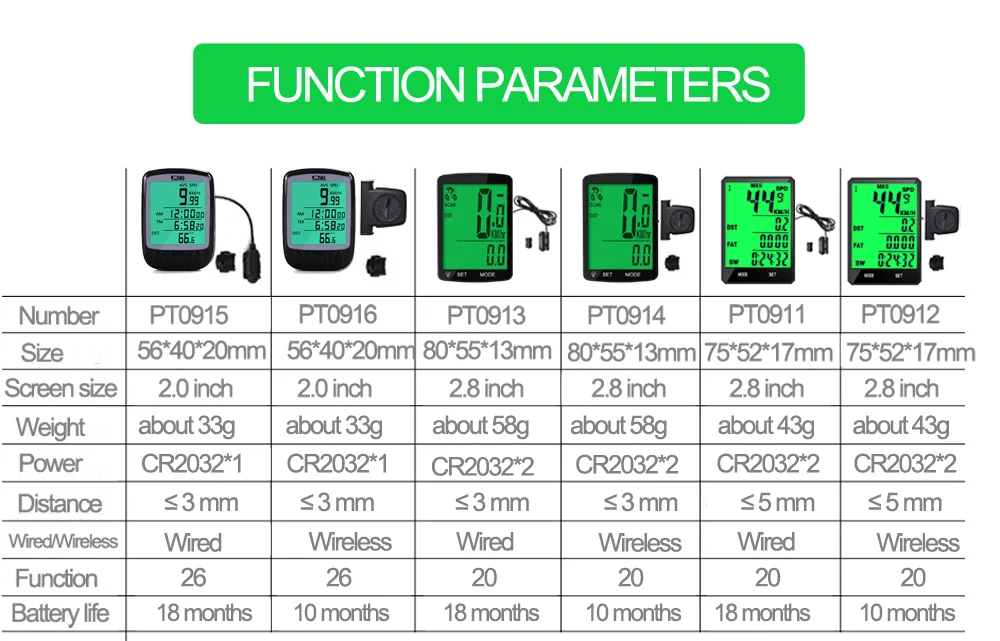

6 Different of models are optional PT0911 /PT0912 / PT0913 / PT0914 / PT0915 / PT0916

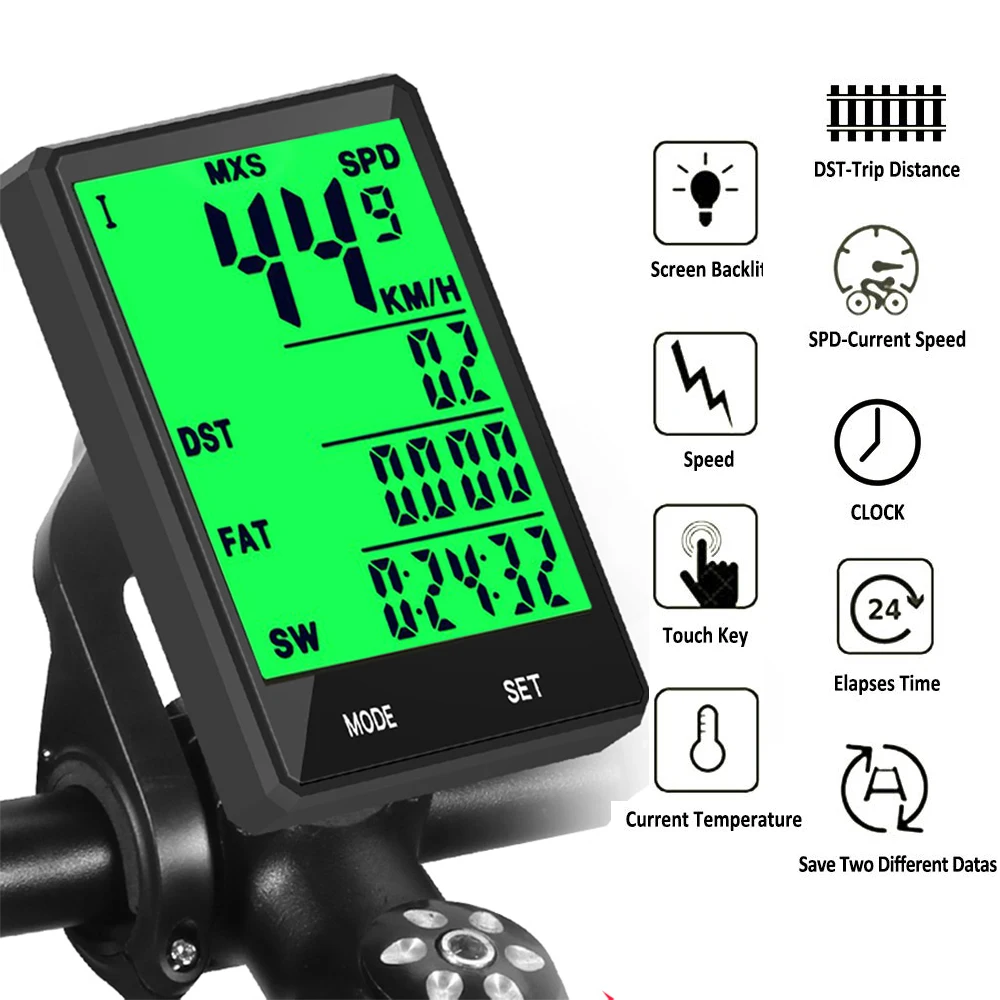

Bike Computer Name 2.8" Large Screen Bicycle Computer Wireless Wired Bike Computer Rainproof Speedometer Odometer Stopwatch for Cycling

Multiple function 20 useful function meet your different riding needs.Intelligent design&Simple operation for people to track their outdoor cycling real time and distance. Simple operation for people to track their outdoor cycling real time distance, maximum speed, average speed, driving time, calorie consumption, temperature, stopwatch, maintenance and etc. More details please refer the product manual.

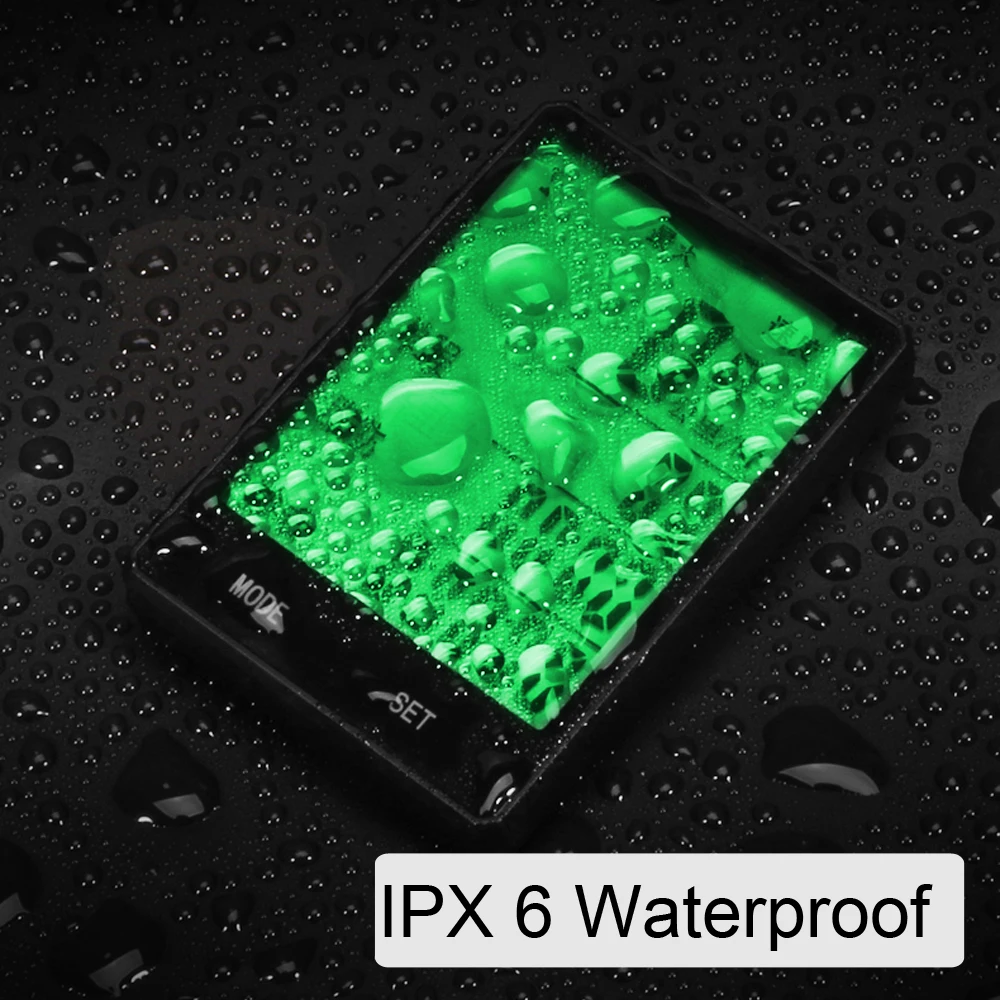

Water resistant & large LCD backlight IPX6 Waterproof keep moving in worst weather，With full-sealed design, waterproof body allows the bike computer to stay with you in any environment or weather，Wired design gives your more accurate speed and cadence tracking，Tailored for riding enthusiasts,track riding speed and distance instead of cellphone,observe your riding status at any time.

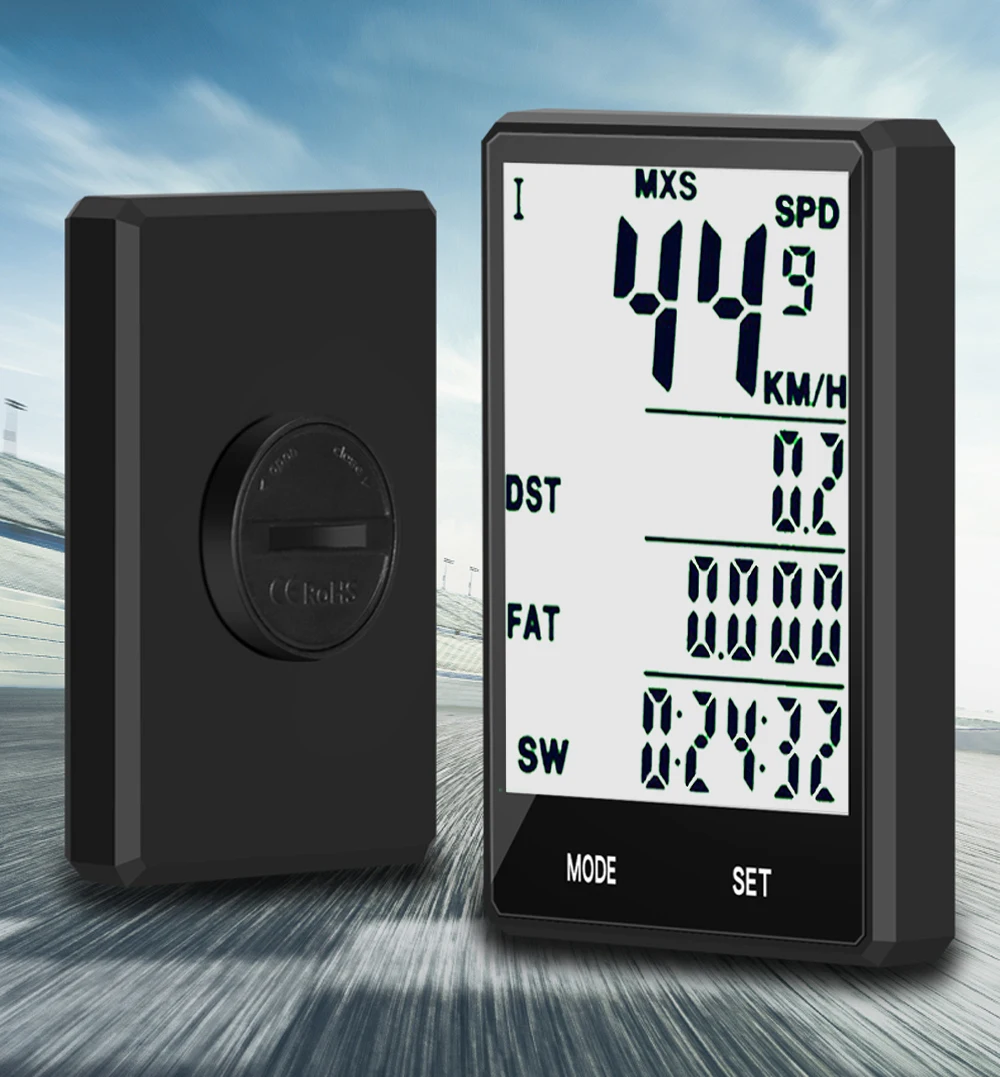

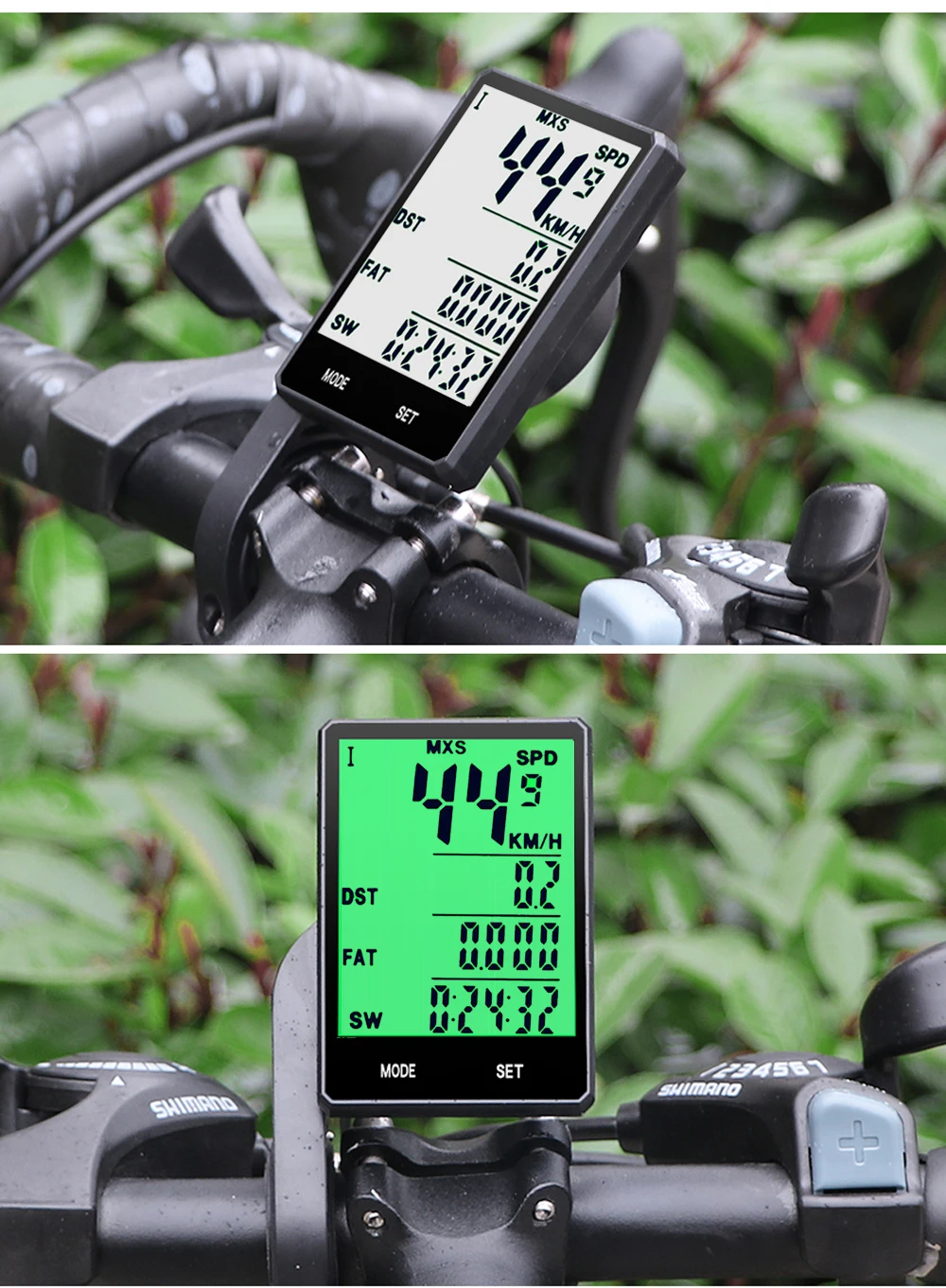

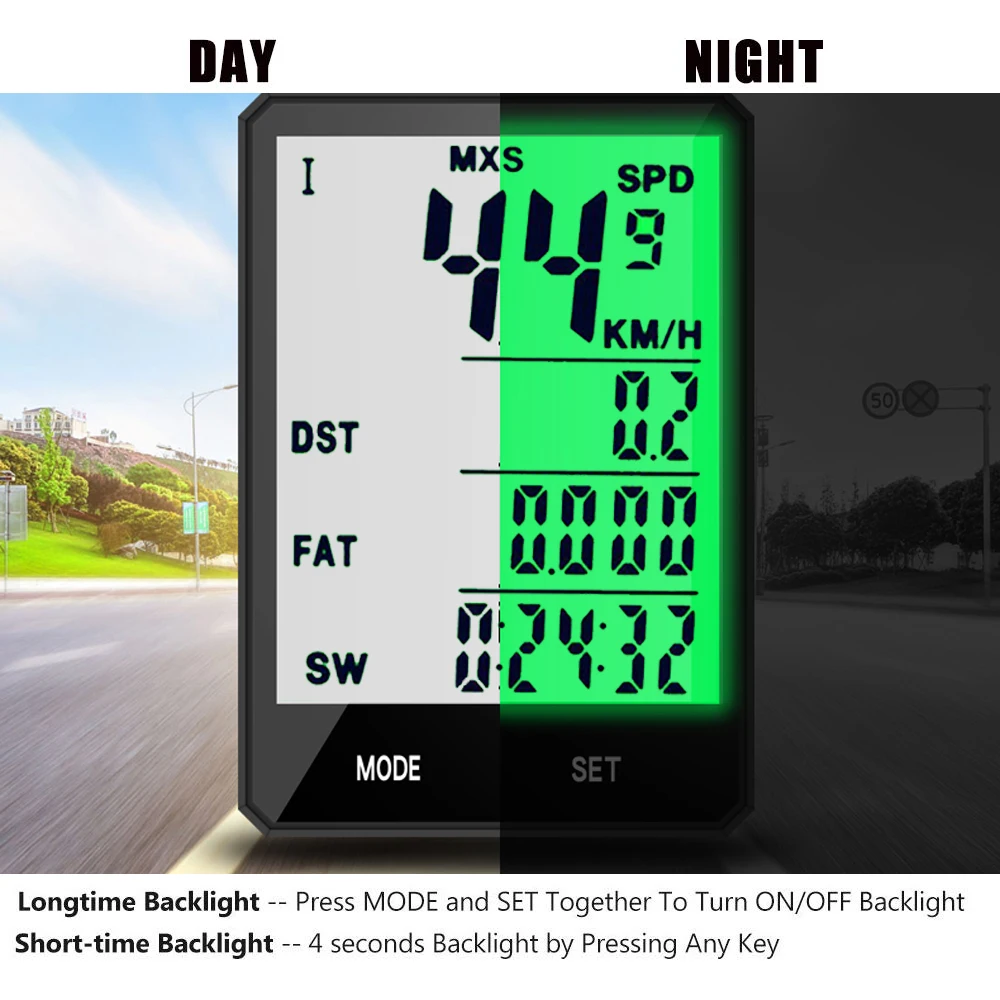

2.8 Inch Large screen & easy to read 2.8 Inch LCD display and the numbers are big enough to read，with green backlight LCD，provide your high visible statistics during day and night,gently touch on the MODE or SET to wake up the backlight screen，Wake up the computer automatically when you start cycling

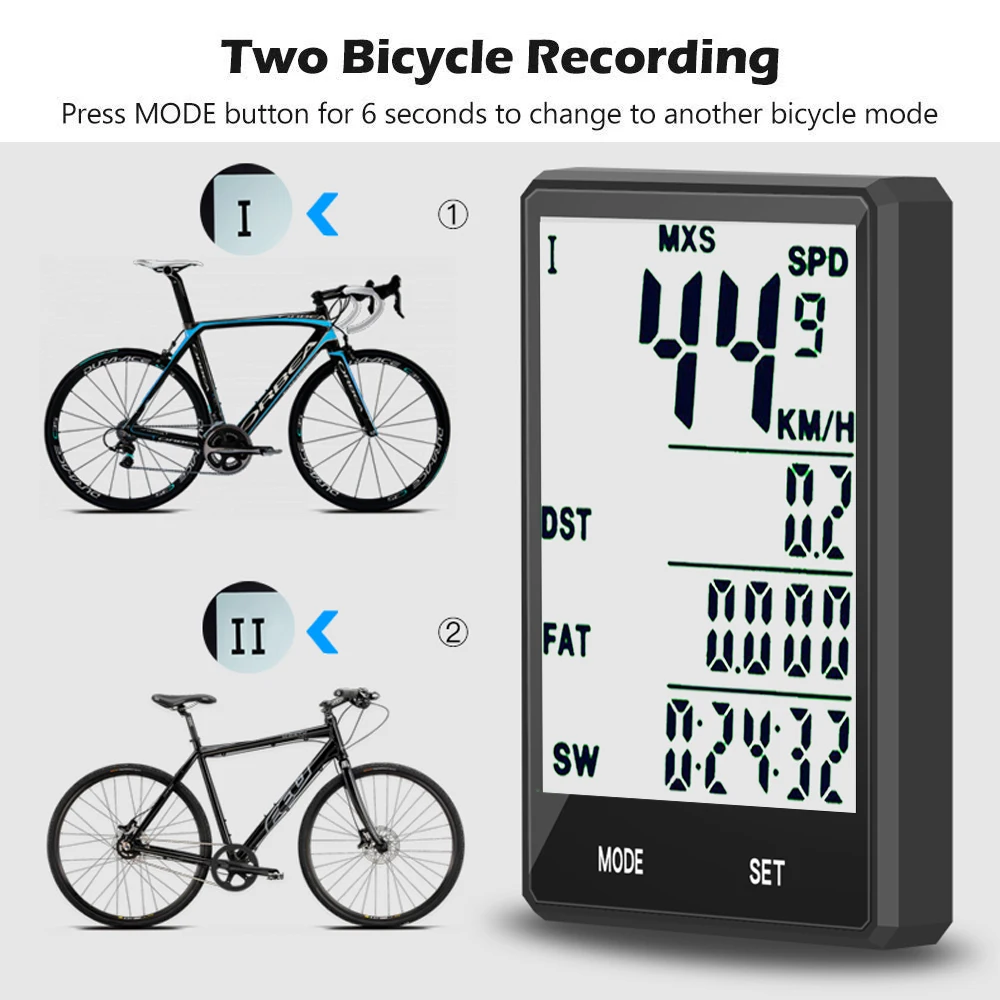

Two bicycle recording Press MODE button for 6 seconds to change to another bicycle mode.

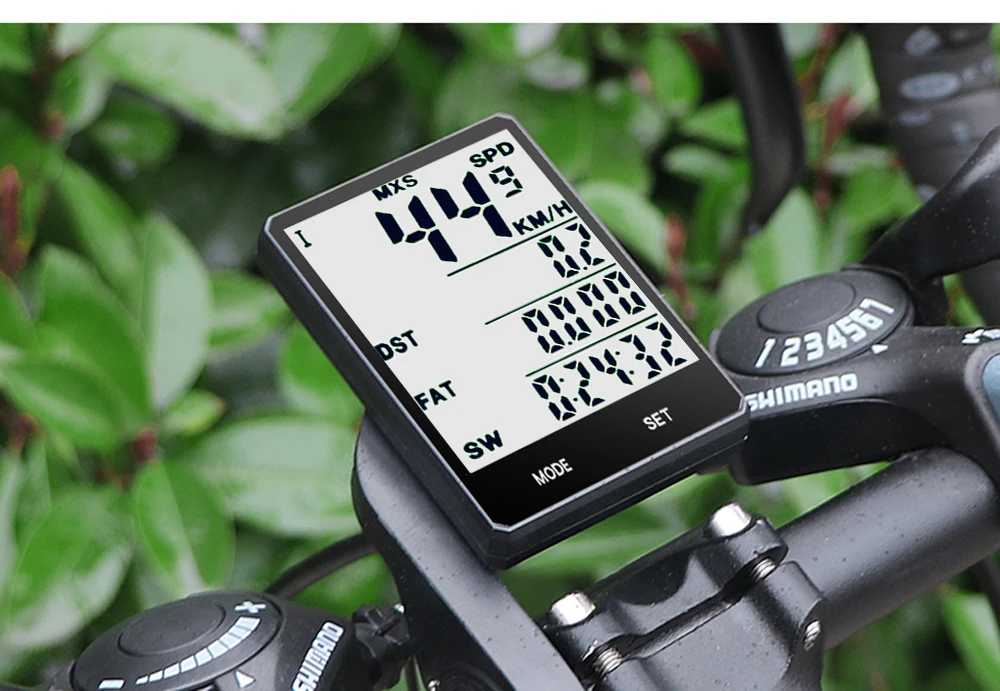

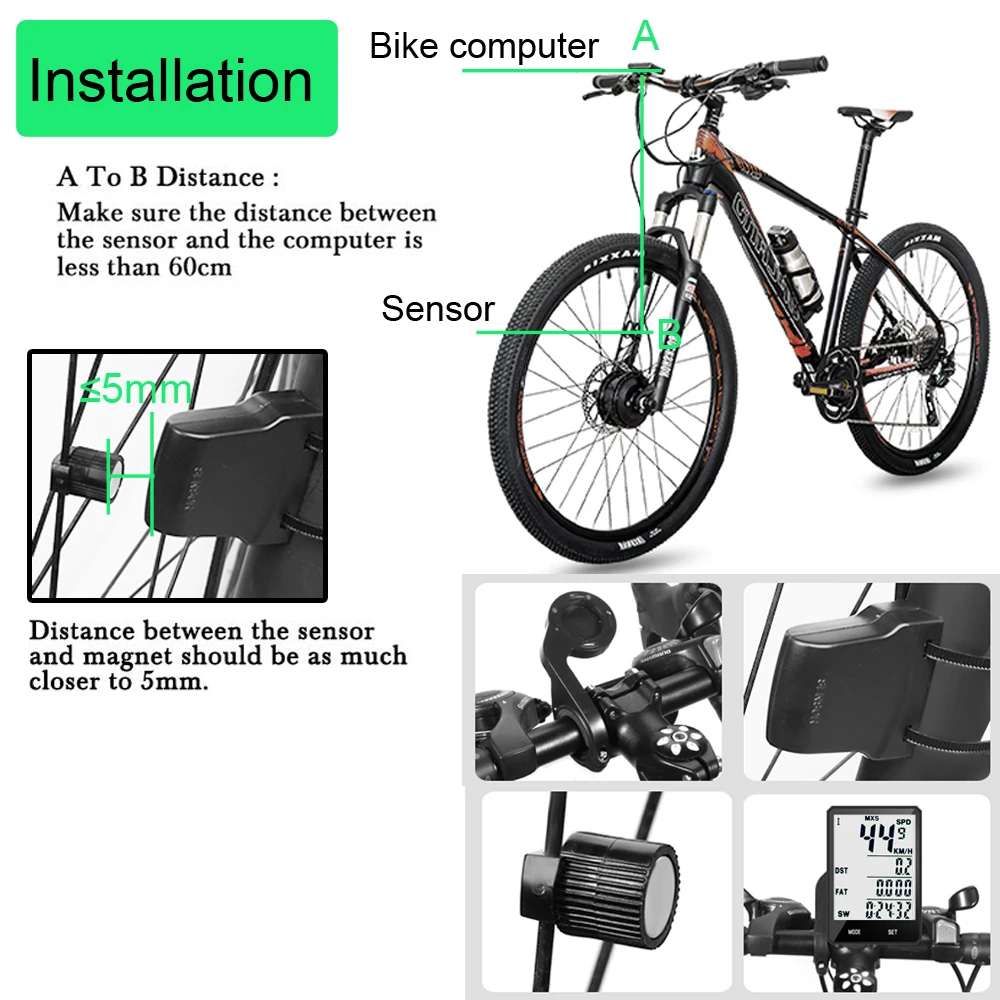

Easy installation Secure and convenient bracket for easy installation ，Wind the cable of the wired speedometer along the brake line of your bike, and the gap between the sensor and the magnet should be less than 3mm. Touch Mode allows you to control the bike computer by gently touching, you can control the bike computer by gently touching during riding without pressing forcefully，Suitable for most bicycles 0.98-1.24 Inch handlebar diameter.（Please measure your bicycle handlebar before order)

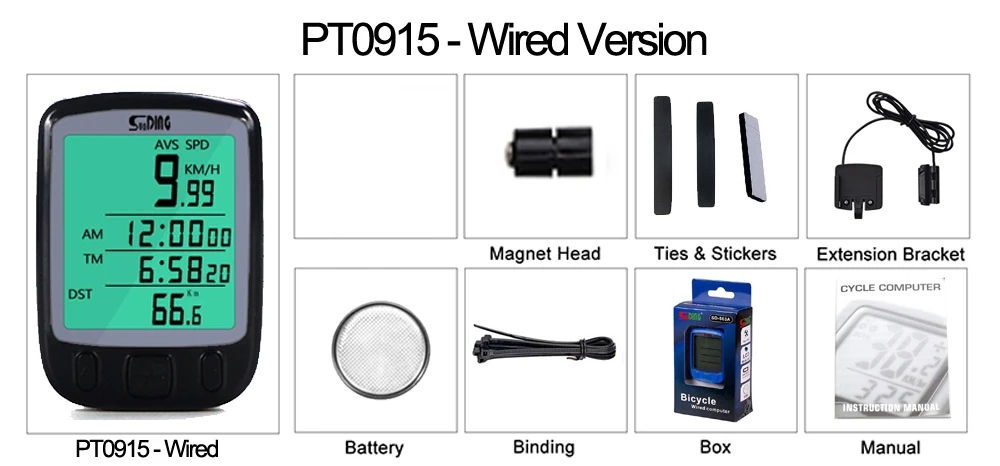

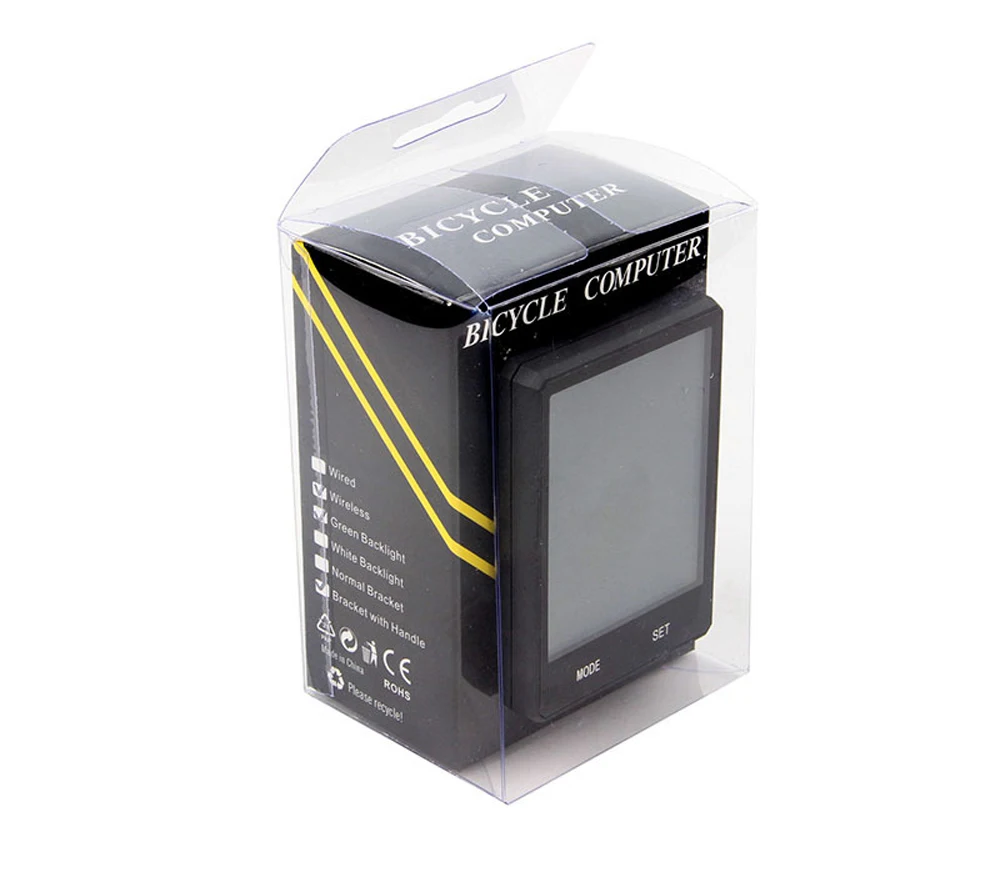

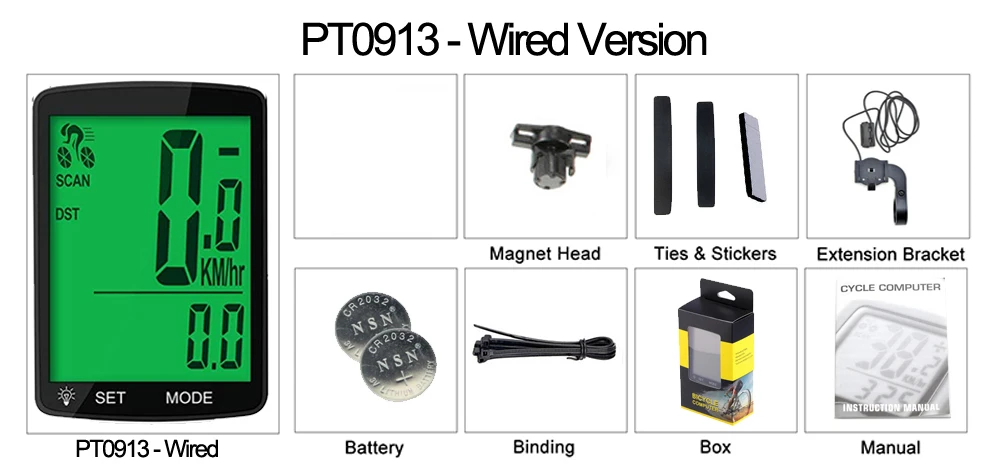

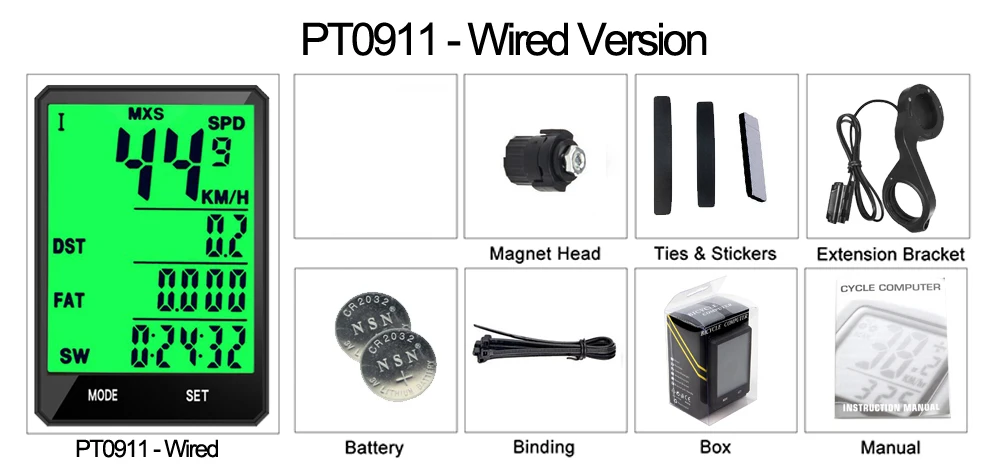

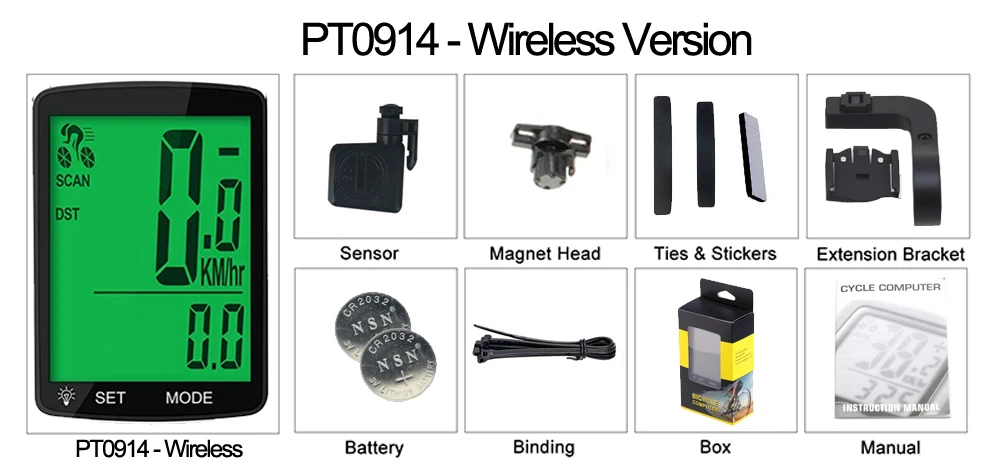

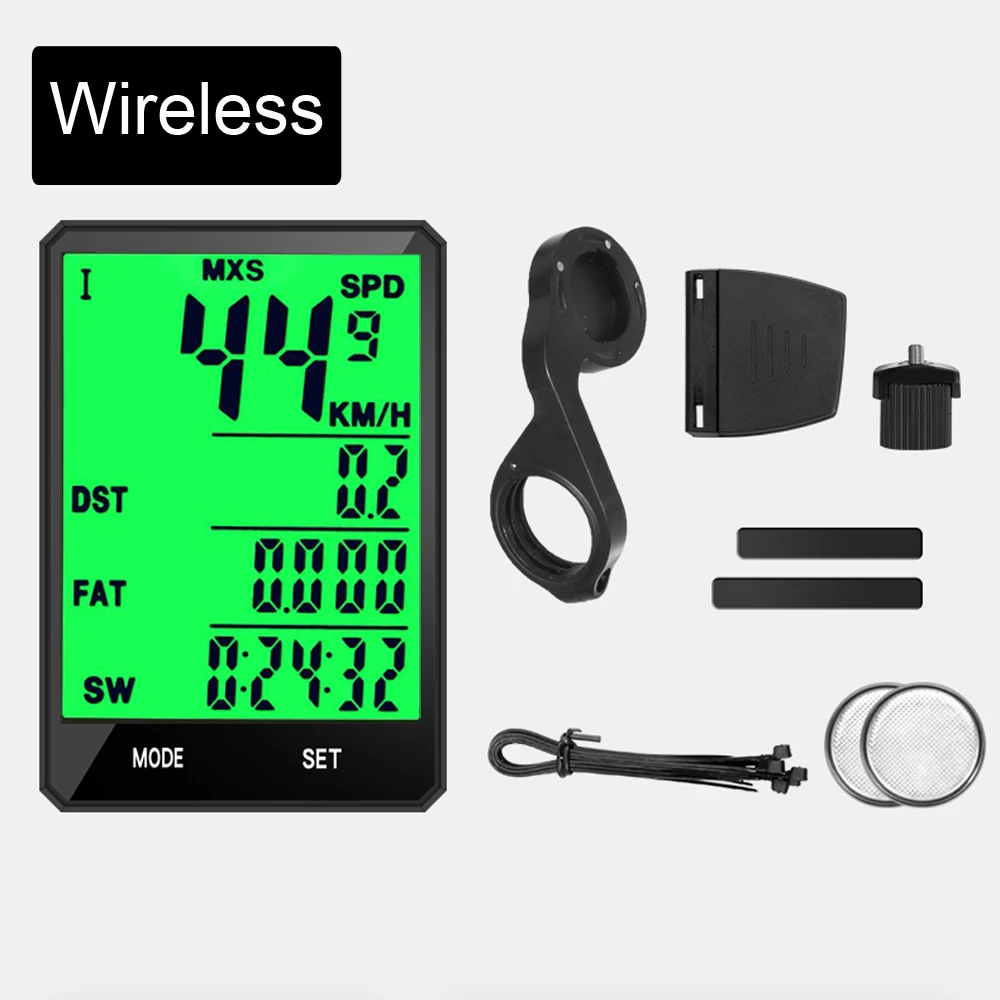

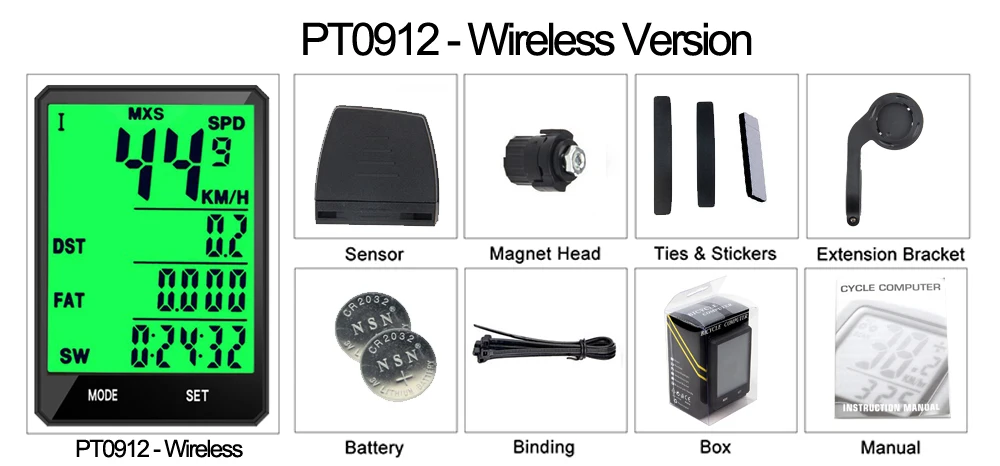

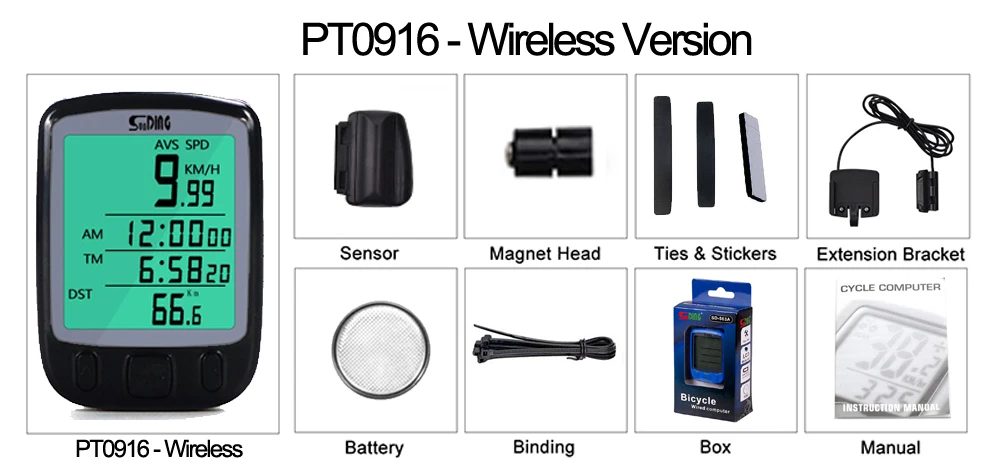

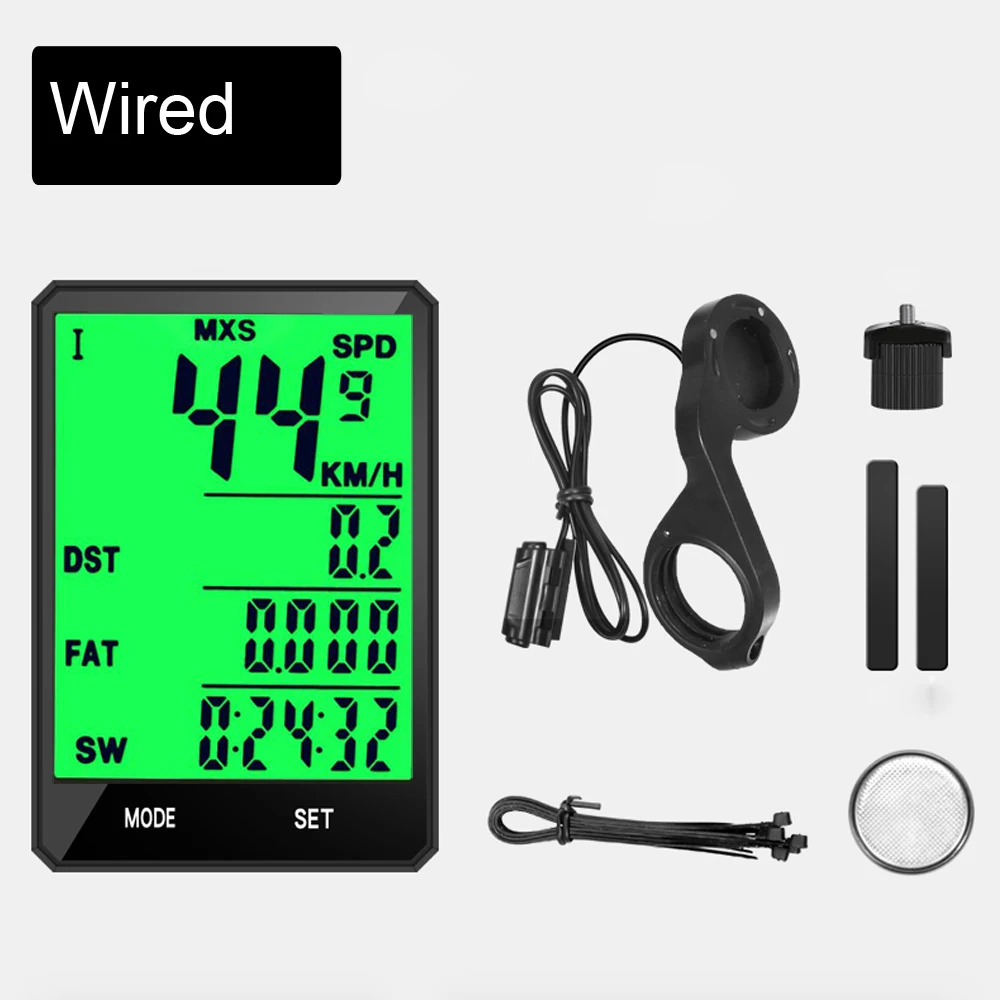

Showcase Package List Wired or Wireless 1* bike computer 1* Sensor 1* Magnet head 2* Tires and stickers 1* Extension bracket 1* Battery 1* Binding 1* Retail Box 1* Manual

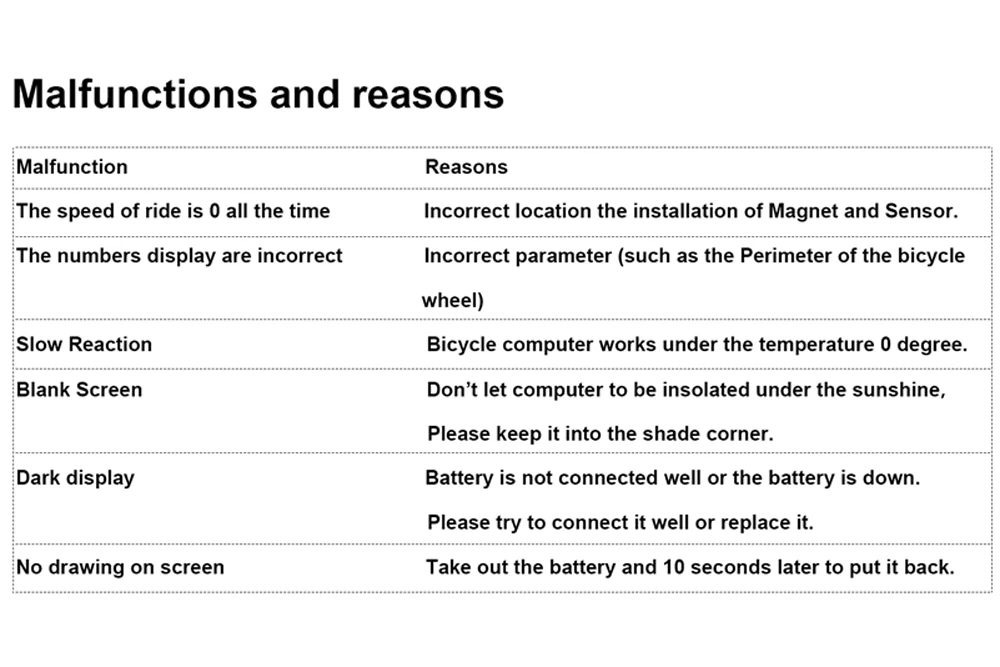

Malfunction and reasons 1. The speed of ride is 0 all the time Reason: Incorrect location the installation of magnet and sensor 2. The number display is incorrect Reason: Incorrect parameter , such as the perimeter of the bicycle wheel 3. Slow reaction Reason: Bicycle computer works under temperature 0 degree 4. Blank screen Reason: Don't let computer to be insolated under the sunshine , please keep it into the shade corner. 5. Dark display Reason: Battery is not connect well or the battery is down. please try to connect it well or replace it. 6. No drawing on the screen Reason: Take out the battery and 10 seconds later to put it back.

Instruction (Mode-Left key, Set-Right key) (Please tear the screen protective film first, and read step by step) 20 Functions - Memory functions - Speed tendency (3 km per grip) - Two bicycle using - SPD Current speed (0-99.9) - ODO Odometer - DST Trip distance - MXS Max speed - AVS Average speed - TM Trip riding time - CLOCK 12H/24H - SW Stop watch - CAL Calories Level - FAT Fat burn measurement - TEM Temperature - Backlight - Low power indicator - Maintenance alert - KM, M selectable - Setting tyre circumference and ODO - Auto off Battery Installation Remove the battery cover and put a piece of CR2032 battery into the case. Notice: Positive pole (+) should be set upwards. Then cover the the battery cover and screw down. Pedestal Installation In the accessories pack there has a strap which can be used to fasten the Seat onto the handlebar, as well we can use the back-up plate to fasten it. Sensor and Magnet Installation Install the sensor onto the front fork of bicycle, and the magnet is installed onto the steel wire at the same side of wheel. Sensor can be underlaid with back-up plate and use the strap to fasten onto the front fork. It needs to be installed in 60cm distance from the computer, as the picture shows. Adjust the comparative location of Sensor and Magnet. The plane must face to the inductor. Keep the space to be 5mm. Magnet cannot be set to the center of Sensor face-to-face, itrsquos better with the head or tail of Sensor Wheel Perimeter Setting Input the circumference from 0 mm to 999 mm. You can alsomeasure it by yourself by the following ways: First make a mark on the ground when the nozzle is on the below. Then make the wheels run once the gas mozzle on the below again please mark. And measure the distance between the two marks you can get your wheel perimeter. If the distance is 1615 then you should input 1615. (You can also measure the diameter and multiply 3.14 to get the perimeter.)

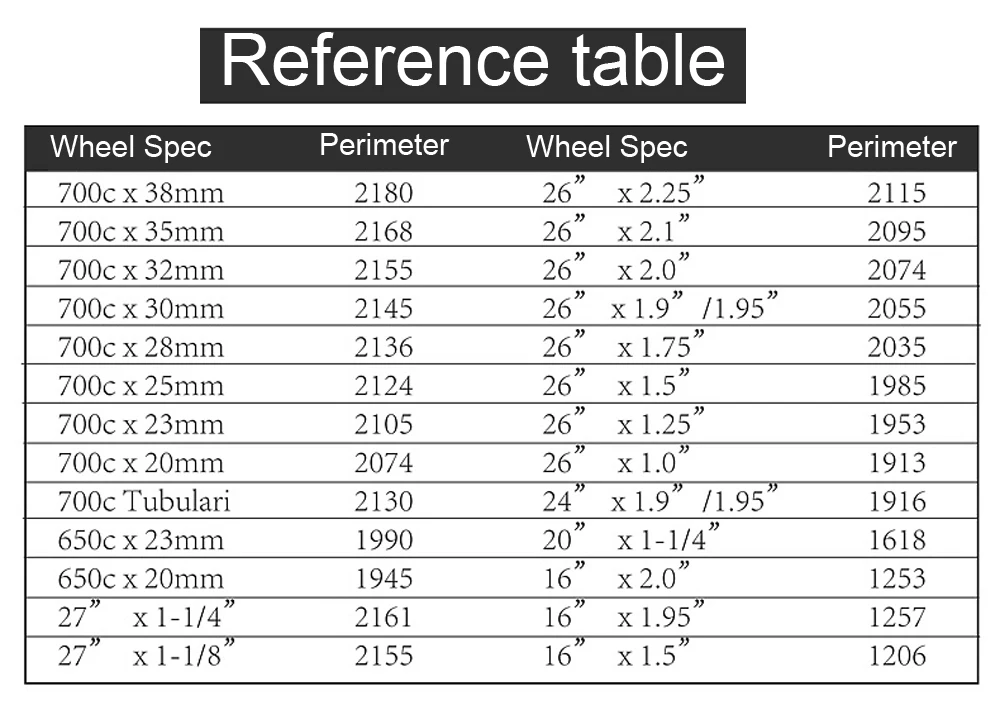

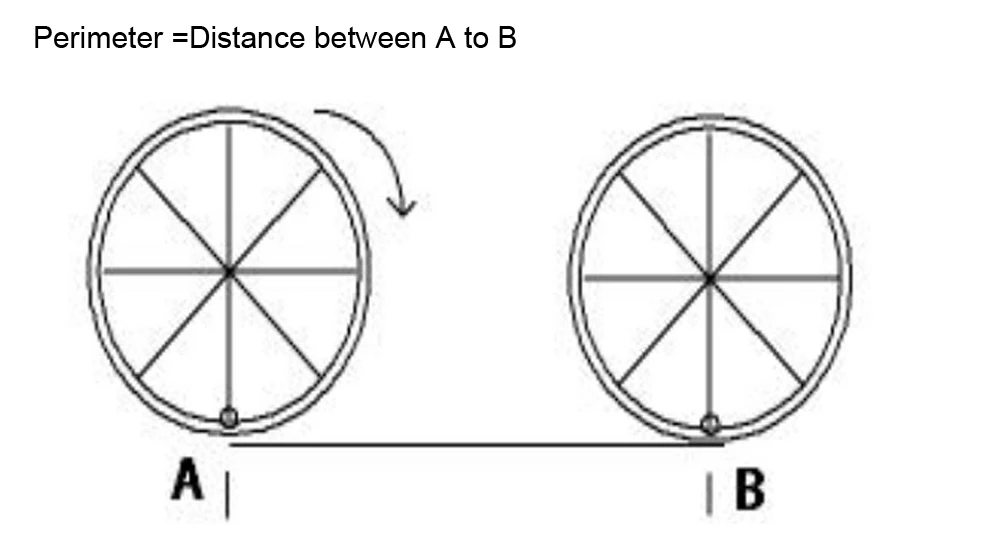

Setting Steps 1 Put the battery on - Setting KM, M, press SET button to choose and press MODE button to confirm. 1 mile = 1.609 km. 2 Wheel I perimeter setting, the screen shows 2060 (perimeter is 2060 mm). Setting the flashing number from right to left, press SET button to change the number and press MODE button to confirm. 3 Wheel II perimeter setting, the screen shows 1860 ( perimeter is 1860 mm). Setting the flashing number from right to left, press SET button to change the number and press MODE button to confirm. 4 Weight setting. Screen shows K065 and ldquoKrdquo flashing.First choose Kilogram K or Pound L then setting the value. Press SET button to choose and press MODE button to confirm. 5 Bicycle I Maintenance setting, screen shows 0200, setting from right to left. Press SET button to change the flashing number and press MODE button to confirm. 6 Bicycle II Maintenance setting, screen shows 0800, setting from right to left. Press SET button to change the flashing number and press MODE button to confirm. From now on you have finished the setting, and you can ride your bike. Default bike is bike I. If you want to reset please press left and right key for 6 seconds at the same time, and the steps are the same with above. ODO, CLOCK and TEM unit Setting Under ODO ndash TEM - CLOCK mode, press SET button ODO flashing, press SET button again TEM flashing, press SET button again Clock icon flashing. When ODO flashing, press SET button for 3 seconds to set ODO value. Press the SET button change the number, press MODE button to confirm it, set from right to left number. When TEM flashing, press SET button for 3 seconds to set the temperature unit. Press SET button to change ℃/℉, press the MODE button to confirm it. When Clock icon flashing, press SET button for 3 seconds to set the date. Press the SET button to change time number, press MODE button to confirm it. Then press SET button to change 12H /24H, press MODE button to confirm it. Press SET button to change time number, press MODE button to confirm it. DST,AVS, MXS, TM, CAL and FAT clear to zero Under DST ndash CAL - TM or DST ndash FAT - SW mode, press SET button for 5 seconds to clear DST, AVS, MXS, TM, CAL and FAT value to zero. Backlight During 17 :00-07 :00, screen will be lighted up for 4 seconds when you press any key. But if you want the screen always lighting at any time, press both SET and MODE button for 1 seconds to keep the screen always lighting up. Press SET and MODE button for 1 seconds again to cancel it . Stop watch Under DST ndash FAT - SW mode, press SET button to shart Stop watch press again to paus, then press MODE button to clear tozero. It ranges from 0:00:00 to 9:59:59. Auto off After 300 seconds no signal inputs the computer, the screen will turn into OFF state with only clock and date display. It will be restart when you press any button. Maintenance Alert Under ODO ndash TEM - CLOCK mode, when distance value reaches to the maintenance setting value, the spanner icon will be flashing in the screen，press the SET button for 3 seconds to cancel it. Current speed Screen will show current speed only when you are riding. Precision is 0.1KM/h. Range at 0~99.9 KM/h (M/h).Screen shows MXS or AVS when you are not riding Speed tendency Screen will show a tendency when you are riding. Speed up, it goes high. Speed down, it goes short. Low power indicator Once the battery voltage decreases to 2.5 V, the blank battery icon will be flashing on screen, that reminds you to change a new battery. Two Bicycle I / II using Under any mode press MODE button for 6 seconds to change to another bicycle mode. Resetting Press both MODE and left Buttonfor 6 seconds to reset KM / M, wheel perimeter/ weight / maintenance. Memory function All cycling and setting data will be kept after changinng a battery. Because of this, the computer havenrsquot cleared to zero before sending to you.
