Mini Pc Intel Core i5 7200U i3 7100U i7 6 LAN 211at Gigabit Ethernet HDMI 2*RS232 Firewall Router PFsense Aes-Ni Pocket Computer
Mini Pc Intel Core i5 7200U i3 7100U i7 6 LAN 211at Gigabit Ethernet HDMI 2*RS232 Firewall Router PFsense Aes-Ni Pocket Computer
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: YCSD
Processor Model: wifi 6 router Intel Core i3 7100U i5 7200U Celeron 2955U 3865U 3965U
Use: Commercial
Memory Capacity: 8GB
Hard Drive Capacity: 512GB
Type: Mini Desktop
Origin: CN(Origin)
Model Number: X44-6LAN MINIPC J1900
Processor Main Frequency: 2.4GHz 2.5GHz 1.8GHz 1.6GHz 1.4GHz
Processor Brand: Intel
Graphics Card Type: Integrated Card
Type: MINI PC
Type: mini desktop pc Desktop
Memory Types: 1xDDR3L 1066/1333/1600MHz
Hard Drive Types: 1 x mSATA SSD,1x SATA2.5 "HDD (highest data conversion rate SATA3.0)
Video Output: 1x HDMI

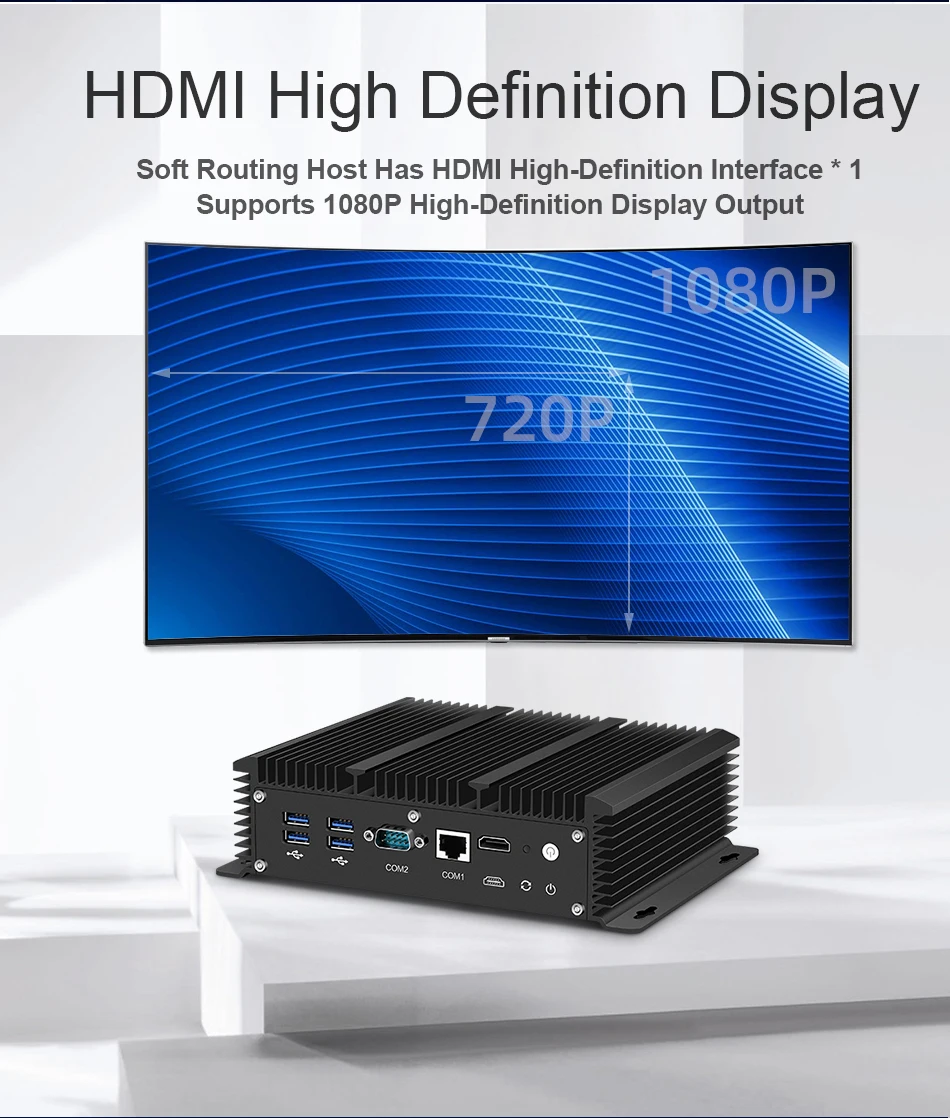

HDMI: Max 1920x1080@60Hz
Processor Graphics: Intel HD Graphics
Ethernet: 6 x 10/100/1000 / Mbps Intel 211AT, support timing boot, Wake on LAN
USB Ports: 2xUSB3.0, 2xUSB2.0/4xUSB3.0
Memory Capacity: 2GB 4GB 8GB 16GB Optional
Hard Drive Capacity: From 16GB to 1TB optional
Construction: Fanless
OS Support: Windows 7 8, Windows 10, ubuntu/LINUX/CENTOS/ LEDE /ESXI6.7
PC Box Material: Aluminum Alloy
Dimension: 209mmx149mmx54mm
Warranty: 36 months
About Shipping
1) Buyer select DHL/Fedex shipping method, should be sure your address is belong to normal delivery area, otherwise there will be extra cost for delivery, if your address is remote area, our salesman will inform you asap; or we will ship out by other shipping method; 2) All Item price NOT include destination custom taxes and VAT.
Note: If you buy mini PC with both memory and hard drive, we will free add WiFi; but our barebone (no memory no hard drive) package comes without WiFi, if you want to add WiFi, please pay $7.0USD at DIY link
Key Features |
CPU |
Intel Core i3-7100U, 3M Cache, 2.40 GHz
Intel Core i5-7200U, 3M Cache, up to 3.10 GHz

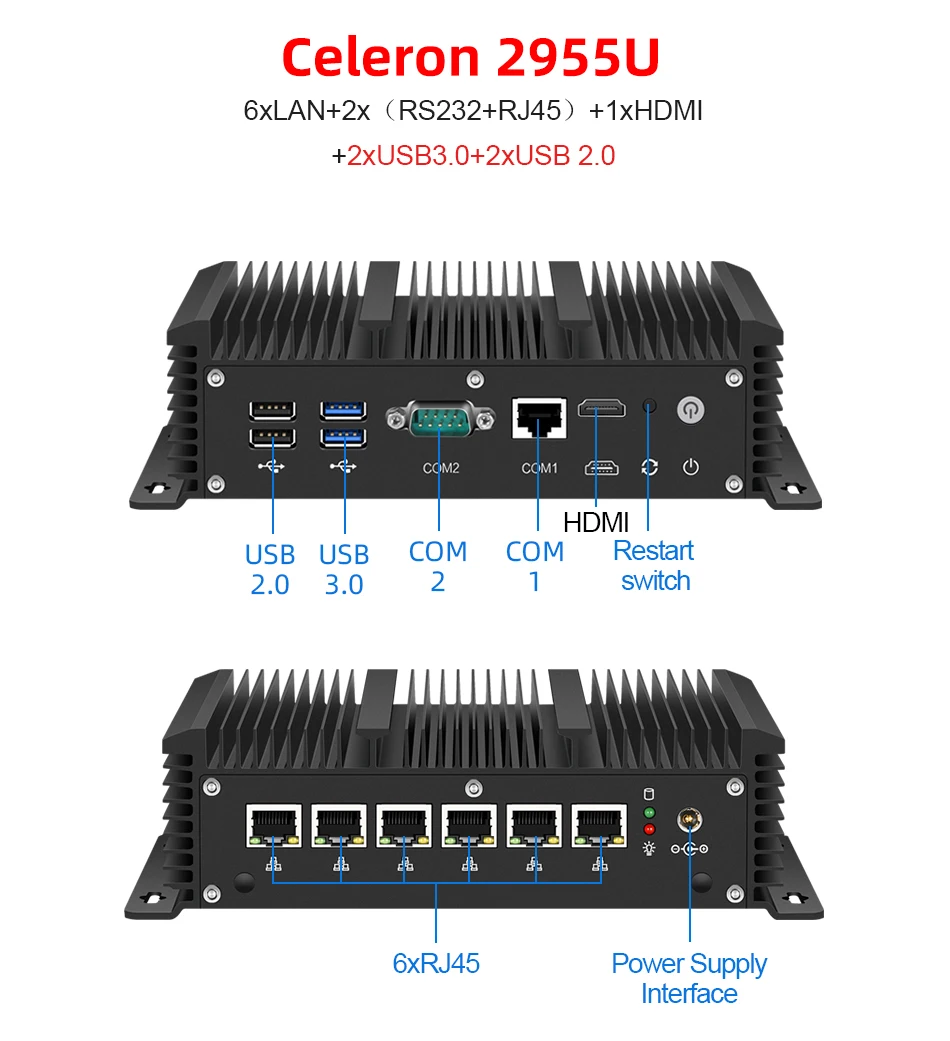

Intel Celeron 2955U,2M Cache, up to 1.40 GHz
Intel Celeron 3865U,2M Cache, up to 1.80 GHz
Intel Celeron 3965U,2M Cache, up to 2.20 GHz
|
Display Function |
HDMI max resolution 4096x2304@24Hz |
|
OS Support |
Support Windows 7,Windows 8, Windows 10, ubuntu / LINUX / CENTOS Aikuai / LEDE /ESXI6.7 |
|
CPU Platform |
intel Coffee Lake |
|
Chipsets |
Intel 100 series PCH |
|
CPU install Method |
BGA 1440 |
|
I/O Ports |

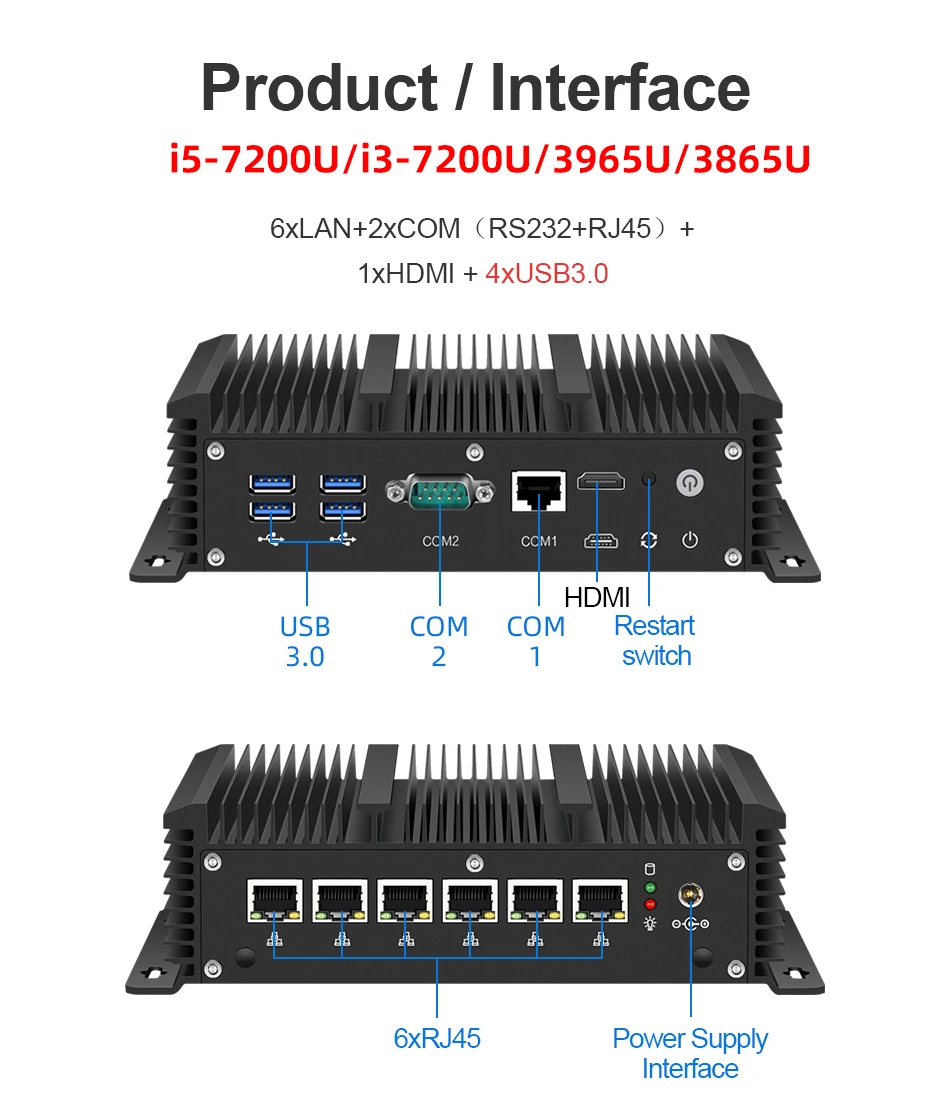

1x HD-MI+6 x Gigabit LAN port+2 x USB 3.0+2 x USB 2.0+2xCOM(RS232+RJ45) |
|
CPU Leve 2 Cache |
Depend on CPU |
|
Chipsets |
intel PCH-LP |
|
Memory Support |
DDR3L 1066/1333 / 1600MHz,1*204-pin SO-DIMM |
|
RAM Slot |
1 SO-DIMM Slots, support up to 8GB |
|
Storage |

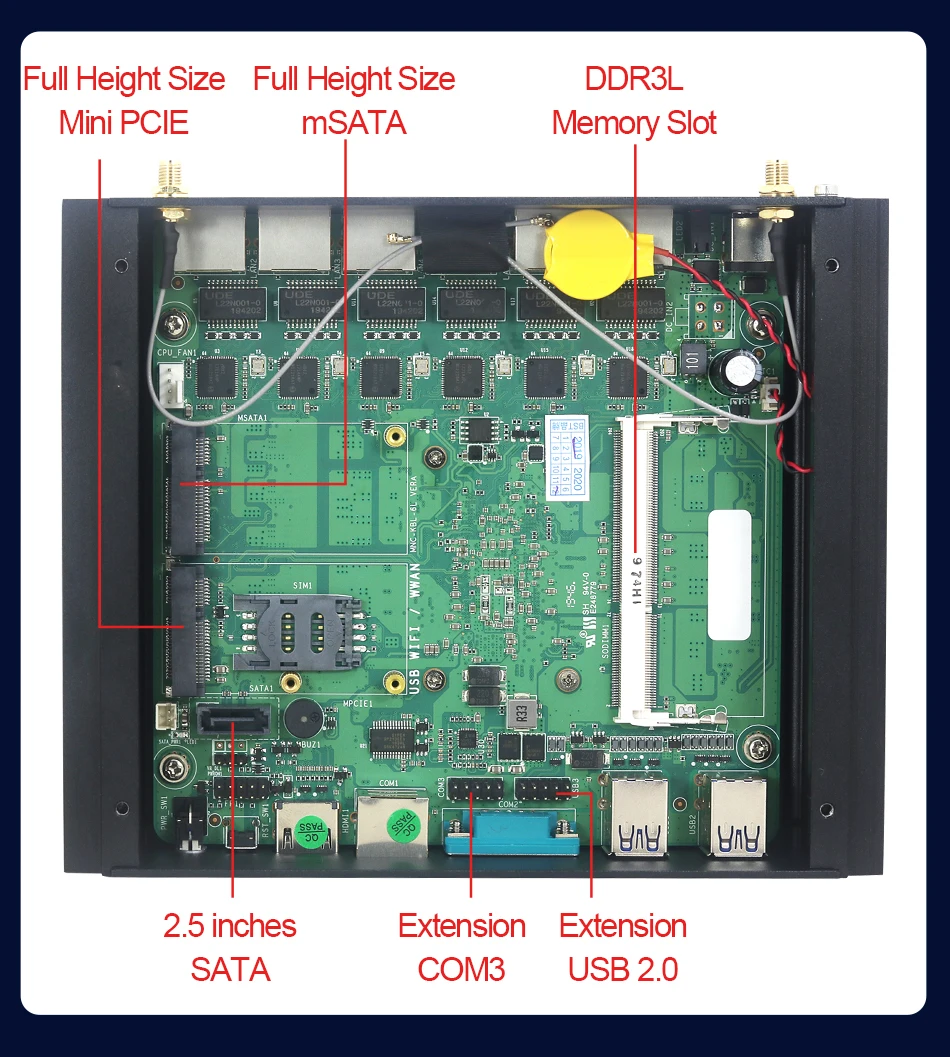

1× mSATA SSD Socket,Support 1 * SATA2.5 "HDD (highest data conversion rate SATA3.0) |
|
Wireless networking devices |
WiFi |
|
Ethernet |
6 * 10/100/1000 / Mbps Intel 211AT, support timing on, wake on network |
|
Power and Working Environment |
Input |
DC 12V 5A/60W(AC TO DC,100~240V) |
Operating Temperature |
-20/+65 Centigrade |
|
Storage Temperature |
15/35 Centigrade |
|
Relative Humidity |
5%~95% (non-condensing) |
|
Energy-saving |
Support Energy-saving technology, Speedstep |
|
64 bit computing |
Support 64 bit computing |
|
Virtualization |
Support Virtualization technology |
|
Hyper-threading |
Core Series Support Hyper-Threading, not supported by Celeron 2955U |
|
Consumption |
15W |
|
Physical Properties |

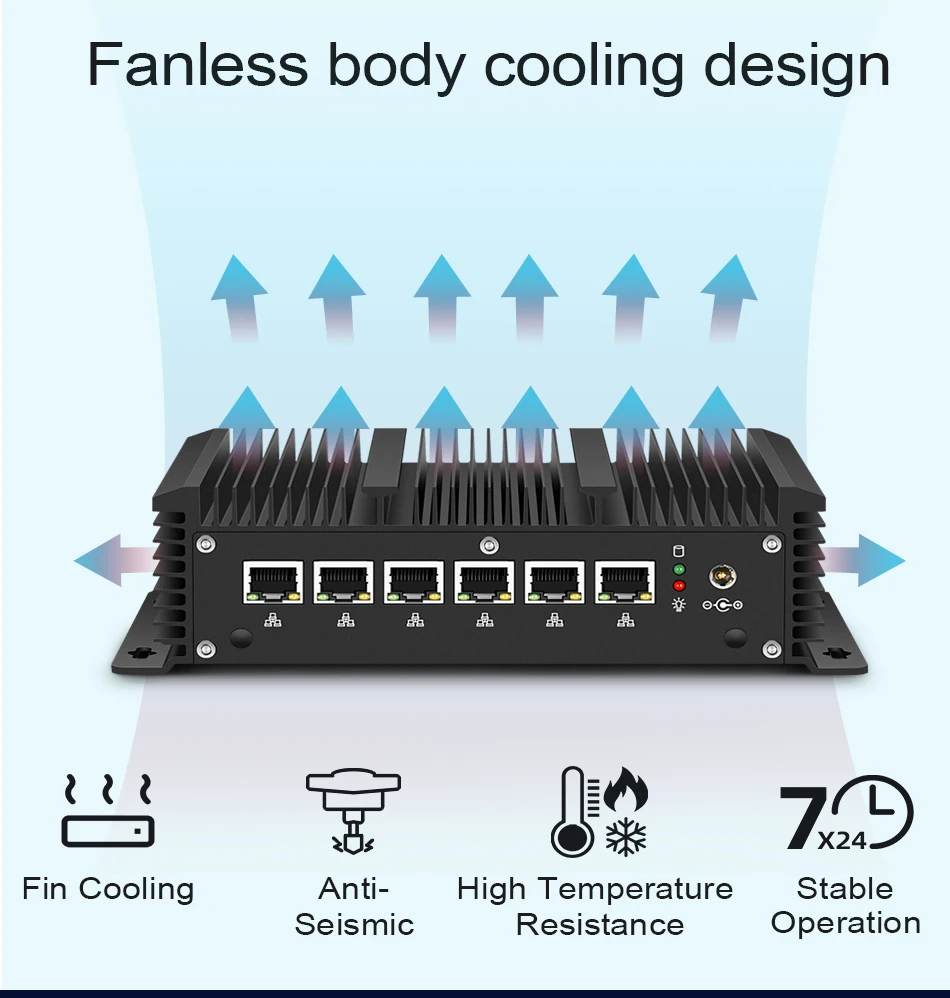

Fan |
Fanless |
Material |
Brushed Aluminum Alloy, a film covered on surface |
|
Package Content |
1x Mini PC |
|
Warranty |
3 years free repair |
